Planet

Planet 22 Plus Multiradius

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅10 - ∅22 mm (#3 - #7)

• Double wire up to ∅16 mm (#5)

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

• Ring forming tool (optional) up to Ø20 mm (#6)

PLANET 22 Plus Press 3D

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅10 - ∅22 mm (#3 - #7)

• Double wire up to ∅16 mm (#5)

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

• 3D press

PLANET 22 Plus W Press 3D

SHAPE FORMER AND STIRRUP BENDER FROM COIL

COIL ∅10 - ∅22 mm (#3 - #7)

• Double wire up to ∅16 mm (#5)

• Rollers are equipped with 3 grooves: two are dedicated to the simultaneous processing of 2 wires (up to 16 mm (#5)) and one for single wire (up to 22 mm (#7))

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Multi-wire pre-feeder

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

• Press 3D

Planet 16 Advanced

Shape forming and stirrup bender

Single wire Ø8 to Ø16 mm / #3 - #5
Double wire Ø8 to Ø14 mm / #3 - #4
• New compact shear

• (Advanced Feeding System) Generation IV

• Independent pressure control for each wire

• Electric collecting carriage

• Evertything electric except the shear

• Kit power consumption

• Twin Sense ready

PLANET 16 Advanced Press 3D

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅8 - ∅16 mm (#3 - #5)

• Double wire up to ∅12 mm (#4)

• Option double wire up to Ø14 mm

• Optional Press 3D up to Ø16 mm (#5)

• Multiwire pre-feeding unit

• New compact shear

• AFS 4 (Advanced Feeding System) Generation IV

• Independent pressure control for each wire

• A wide variety collecting device for stirrup and shapes are available

• Bending pins accordingly to national rules

• Energy saving and efficiency

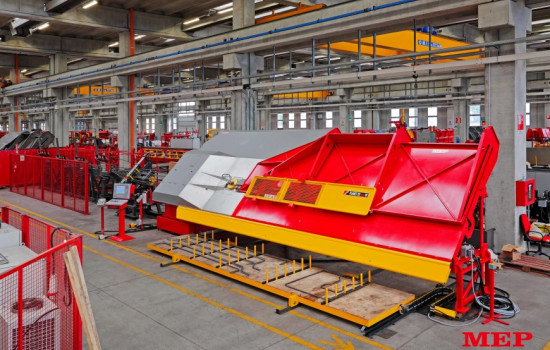

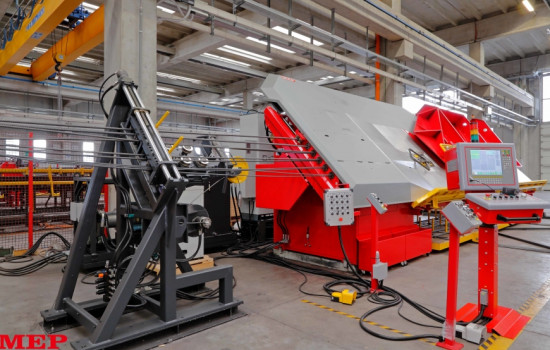

Planet 22 Plus W

SHAPE FORMING AND STIRRUP BENDING FROM COIL

Single wire ∅10 - ∅22 mm (#3 - #7)
Double wire ∅10 - ∅16 mm (#3 - #5)

• 3 groove rollers

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Multi-wire pre-feeder

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

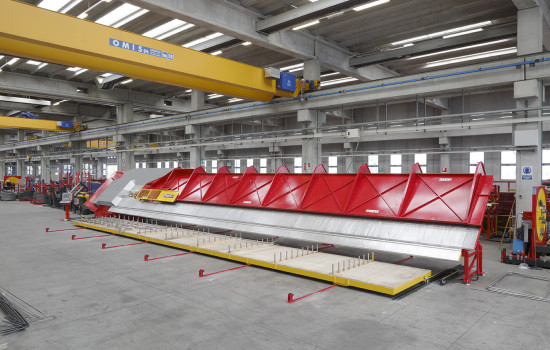

Planet 26

SHAPE FORMER AND STIRRUP BENDER FROM COIL

Single wire ∅10 - ∅26 mm (#3 - #8)

• AFS: pressure control on the two wires individually

• The 2-groove rollers characterized by different profiles and sizes

• Multi-wire pre-feeder

• Multi-wire pre-feeder (single wire/double wire version)

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

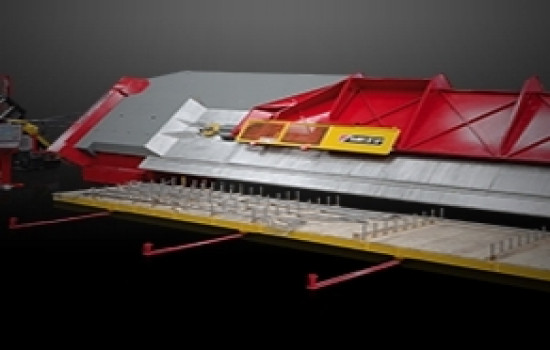

Planet 26 Plus Stainless Steel

SHAPE FORMER AND STIRRUP BENDER FROM COIL

COIL ∅10 - ∅26 mm (#3 - #8)

• Single wire

• The processing of stainless steel INOX in coil

• AFS: pressure control on the two wires individually

• The 2-groove rollers characterized by different profiles and sizes

• Multi-wire pre-feeder

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

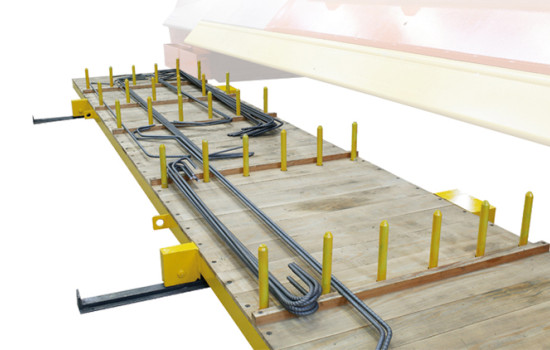

Planet 22 Plus

SHAPE FORMING AND STIRRUP BENDING FROM COIL

Single wire ∅10 - ∅22 mm (#3 - #7)
Double wire ∅10 - ∅16 mm (#3 - #5)

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

Planet 22 Plus W Multiradius

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅10 - ∅22 mm (#3 - #7)

• Double wire up to ∅16 mm (#5)

• Rollers are equipped with 3 grooves: two are dedicated to the simultaneous processing of 2 wires (up to 16 mm (#5)) and one for single wire (up to 22 mm (#7))

• AFS 3 (Advanced Feeding System) Generation III

• The pressure exerted on each individual wire

• Multi-wire pre-feeder

• Motorised collection trolley, belt conveyor and chain collector conveyor are available

• Bending pins accordingly to international rules

• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t

• The automatic "Multiradius" method for curved products with multiple radii of curvature and large rings

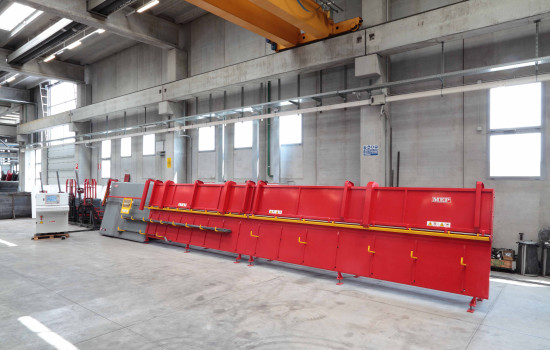

Planet F13

STIRRUP BENDER AND AUTOMATIC SHAPING FROM COIL
Single wire ∅5 - ∅13 mm / #3-#4
Double wire ∅5 - ∅10 mm / #3-#4

• AFS2

• full automatic control of all straightening functions.

• double traction for any shape

• no restrictions on shapes and dimensions

• gravity for quality
