Omni
NEXT-GENERATION ROTOR STRAIGHTENING & BENDING MACHINE

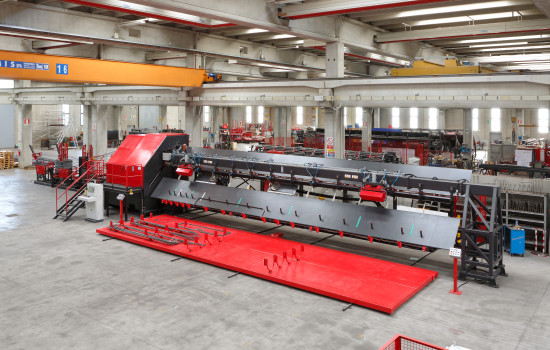

The OMNI ADVANCED is a fully automatic, electronically controlled system for straightening and bending coil (cold-drawn or hot-rolled) with tensile strength up to 700 N/mm². Completely re-engineered from the previous OMNI 20 platform, it delivers higher productivity, greater flexibility, and advanced process control for medium to large stirrups, cut-to-length bars, and shaped bars up to 12 meters.
OMNI Advanced
NEXT-GENERATION ROTOR STRAIGHTENING & BENDING MACHINE
The OMNI ADVANCED is a fully automatic, electronically controlled system for straightening and bending coil (cold-drawn or hot-rolled) with tensile strength up to 700 N/mm². Completely re-engineered from the previous OMNI 20 platform, it delivers higher productivity, greater flexibility, and advanced process control for medium to large stirrups, cut-to-length bars, and shaped bars up to 12 meters.
OPERATING DIAMETER RANGE
∅8 - ∅22 mm | #2 - #7
BENDING SPECIFICATION
Single wire ∅8 - ∅22 mm | #2 - #7
Double wire ∅8 - ∅16 mm | #2 - #5
Triple wire ∅8 - ∅12 mm | #2 - #4
KEY FEATURES
Up to six high-performance hyperbolic rotors with fully automatic diameter change
Two independent mobile bending heads
Automatic pin changer
New high-dynamic shear unit (flying or static)
Advanced pulling system (rotors+rollers)
Wide range of accessories
Precision length control system
Minimum bend-to-bend distance: 570 mm with wire diameter Ø8mm and bending pin Ø32 mm
