GAM
Pfahlkorb-Schweissanlage zylindrisch oder polygon
Die Pfahlkorb-Schweissanlagen der GAM HS Serien fertigen automatisch zylindrische oder polygone Körbe in verschiedenen Formen und Abmessungen. Entlang einer variablen Anzahl und Dimension von Längsstäben wird ein kontinuierlicher Draht, in vorbestimmten Abständen, wendelartig umwunden und verschweisst.
Kompaktheit, Produktivität und Qualität sind die hauptsächlichen Eigenschaften.
Gam 1500 HS
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
CAGE LENGHT
minimum 2400 mm | 94.49”
maximum 12000-24000 mm | 472”-945”
LONGITUDINAL BARS
minimum and maximum diameter for cylindrical cage Ø8-40 mm | #3-#12
minimum and maximum diameter for polygonal cage Ø8-20 mm | #3-#6
maximum number of bars Ø 32 mm for cylindrical cage 30
SPIRAL WIRE DIAMETER
minimum and maximum cylindrical cage (on request) Ø6-16 mm (Ø20 mm) | #3 - #5 (#6”)
minimum and maximum polygonal cage Ø6-12 mm | #3 - #4
SPIRAL PITCH
maximum cylindrical cage 500 mm | 19.69”
maximum polygonal cage 300 mm | 11.81”
SQUARE CAGE SIDE
minimum by automatic welding 160 mm | 6.30”
maximum (other sizes on request) 600 mm | 23.62”
Gam 1500 HS PLUS
Doppelschweißgerät
Spirale mit zwei Drähten
Doppelschweißnähte am selben Draht
Bis zu 24 Meter Länge
Gam 2000 HS
Pfahlkorb-Schweissanlage zylindrisch oder polygon
Die Pfahlkorb-Schweissanlagen der GAM HS Serien fertigen automatisch zylindrische oder polygone Körbe in verschiedenen Formen und Abmessungen. Entlang einer variablen Anzahl und Dimension von Längsstäben wird ein kontinuierlicher Draht, in vorbestimmten Abständen, wendelartig umwunden und verschweisst.
Kompaktheit, Produktivität und Qualität sind die hauptsächlichen Eigenschaften.

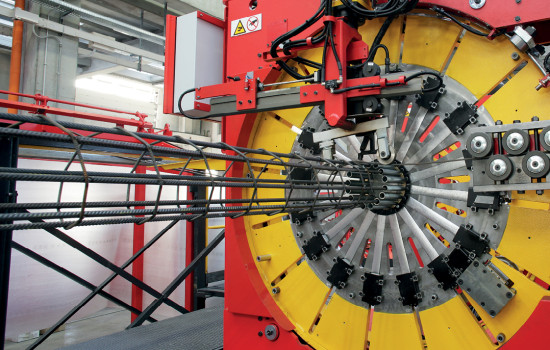

Gam 1500 HS CONIC
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
