GAM
圆柱或多边形的钢筋笼成型机
笼成型机属于 GAM HS 系列，设计生产 桩和不同形状，大小的圆柱或多边形笼.
GAM HS 系列的技术特点，围绕纵向钢筋连续不断的螺旋旋转以便自动焊接机器人焊接。
这种设备以紧凑的布置，可以提供高生产能力和优质的成品， 因此可以安装在一个有限的空间里。

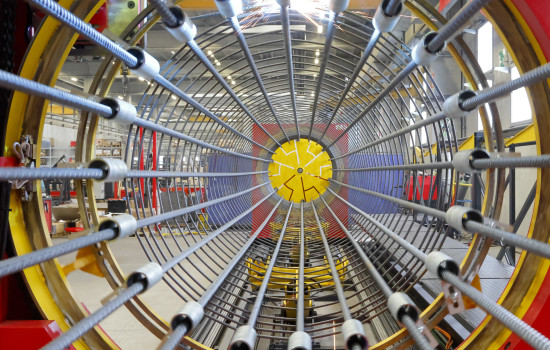

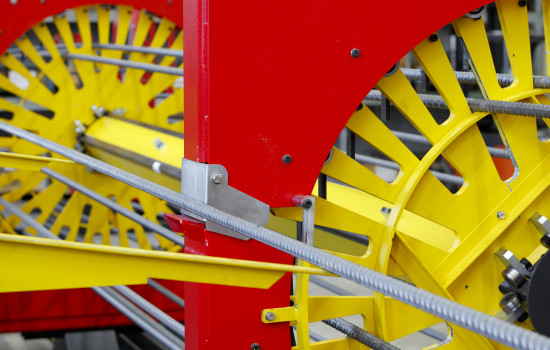

Gam 1500 HS
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
CAGE LENGHT
minimum 2400 mm | 94.49”
maximum 12000-24000 mm | 472”-945”
LONGITUDINAL BARS
minimum and maximum diameter for cylindrical cage Ø8-40 mm | #3-#12
minimum and maximum diameter for polygonal cage Ø8-20 mm | #3-#6
maximum number of bars Ø 32 mm for cylindrical cage 30
SPIRAL WIRE DIAMETER
minimum and maximum cylindrical cage (on request) Ø6-16 mm (Ø20 mm) | #3 - #5 (#6”)
minimum and maximum polygonal cage Ø6-12 mm | #3 - #4
SPIRAL PITCH
maximum cylindrical cage 500 mm | 19.69”
maximum polygonal cage 300 mm | 11.81”
SQUARE CAGE SIDE
minimum by automatic welding 160 mm | 6.30”
maximum (other sizes on request) 600 mm | 23.62”

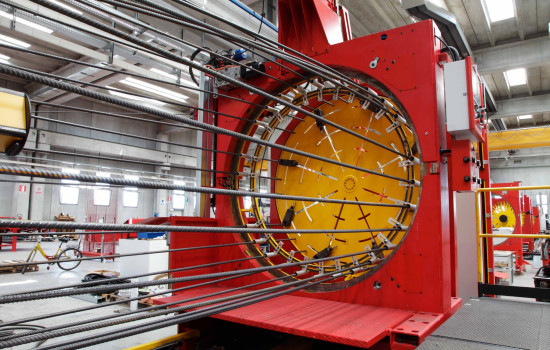

Gam 2000 HS
圆柱或多边形的钢筋笼成型机
笼成型机属于 GAM HS 系列，设计生产 桩和不同形状，大小的圆柱或多边形笼.
GAM HS 系列的技术特点，围绕纵向钢筋连续不断的螺旋旋转以便自动焊接机器人焊接。
这种设备以紧凑的布置，可以提供高生产能力和优质的成品， 因此可以安装在一个有限的空间里。

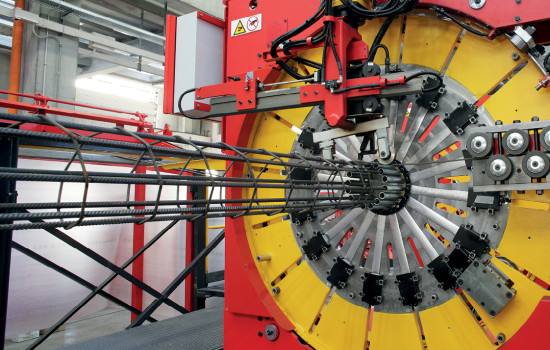

Gam 1500 HS CONIC
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
