Multisystem Bar 3D
Permiten la producción de las más diversas formas con pliegues 2D y 3D en el sentido de las agujas del reloj y en sentido contrario. Trabajan con barras cortadas a medida con un diámetro de 10 a 40 mm (#3 - #14).
Multisystem Bar 3D
AUTOMATIC SHAPING AND RADIUS FORMING MACHINERY
1 BAR Ø12 - ∅40 /#4- #11
2 BARS Ø12 - 25 /#4- #8
3 BARS Ø12 - 16 /#4- #5
BENDING CAPACITY 3D Ø12 /#4

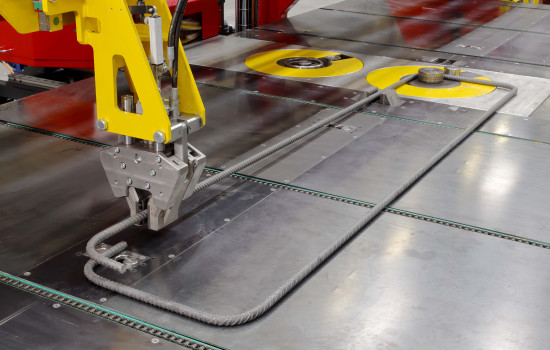

• The stirrups from medium to large sized
• 2D and 3D shaped with one or more bends on both side of the bar with angles up to ±180º (one bend opposite to the other)
• Shapes with 2 different bending radii required in automatic way
• “Patented” Automated bar loader
• Aligning every single bar
• Bar presence detector
• 1 or 2 bar-load selection
• 2 shaping units for 2D bends
• Automatic pins change
• Automatic unloading of finished products
