CS
AUTOMATIC SHAPING MACHINERY
The CS shaping plant is an automatic solution for the production of stirrups and shapes.
Flexibility:
It processes bars from 8 to 50 mm in diameter and produces elements up to 18 m long.
High productivity:
Versions with 2 moving heads ("2M") and high-performance bending machines.
Accuracy:
Central clamp for maximum precision and scrap reduction.
Advanced control:
Drive and control system for automation, productivity and flexibility.
Fast pins change:
Production of bends with variable radius.
Ergonomics and safety:
Automatic design and functions to reduce effort and risk.
Automatic evacuation system:
Finished products in special racks.
Advantages:
Reducing costs, increasing productivity, better quality, flexibility, safety.
Options:
Software work management, automatic lubrication, customised accessories.
Ideal for the production of stirrups and shapes in a variety of industries.

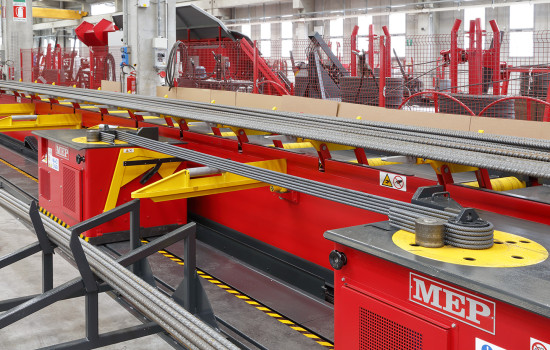

CS 40 SX
AUTOMATIC SHAPING MACHINERY
The CS shaping plant is an automatic solution for the production of stirrups and shapes bent in both the clockwise and anticlockwise directions.
DIAMETER RANGE
∅10 - ∅40 mm I #3 - #11
KEY FEATURES
Fully automatic bending cycle with no manual intervention (higher safety, speed, repeatability)
Bending capability up to ±180°, including opposite bends on the same bar
Universal clamps/grippers for automated transfer and secure clamping during bending
Optional automatic loader and bundle management for continuous workflow
Automatic bar alignment & feeding (magnet arms count each bar to avoid loading errors)
Highly modular configurations, including 2M versions with two moving shaping units for maximum productivity

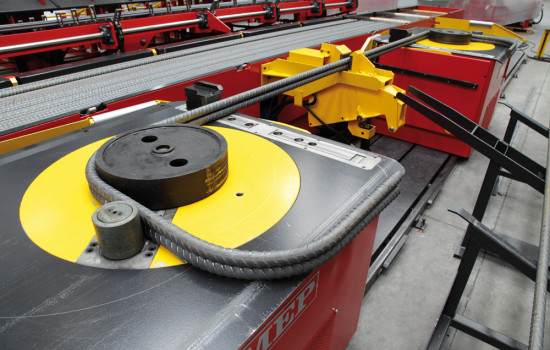

CS 440
AUTOMATIC SHAPING MACHINERY
The CS shaping plant is an automatic solution for the production of stirrups and shapes bent in both the clockwise and anticlockwise directions.
DIAMETER RANGE
∅10 - ∅40 mm I #3- #11
KEY FEATURES
Fully automatic bending cycle with no manual intervention (higher safety, speed, repeatability)
Bending capability up to ±180°, including opposite bends on the same bar
Universal clamps/grippers for automated transfer and secure clamping during bending
Optional automatic loader and bundle management for continuous workflow
Automatic bar alignment & feeding (magnet arms count each bar to avoid loading errors)
Highly modular configurations, including 2M versions with two moving shaping units for maximum productivity

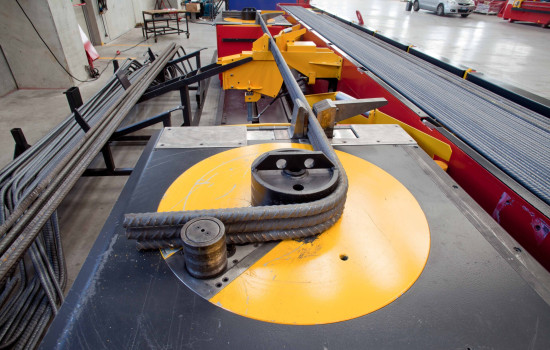

CS 460SX / CS 460 2M
AUTOMATIC SHAPING MACHINERY
BARS ∅10 - ∅45 mm (#3 - #14)
Automatic and effective shaping up to ± 180°.
Bars from 8 to 50 mm diameter.
Elements up to 18 metres long (optional).
Mass production and complex individual shapes.
“2M” version with 2 moving heads for double the productivity.
Multiple clockwise and anti-clockwise bends up to ± 180° automatically.
Production of stirrups with one or more bends on both sides.
Automatic clockwise and anti-clockwise bending for versatility in complex shapes.
Fast bending cycle with retractable side folding pin.
Rapid bar alignment.
Automatic contrast clamps for firm grip and excellent quality.
Automatic feeding and unloading system.
