GAM
PRE-CAGE FORMING, CAGE ASSEMBLING, CYLINDRICAL OR VARIABLE PILES
GAM HS universal wire mesh welding machines represent the ideal solution for the automatic production of cylindrical and polygonal cages in various shapes and sizes.
Key features:
Flexibility: production of cages with diameters from 200 to 2000 mm and lengths up to 24 m.
High productivity: optimized and continuous work cycle thanks to state-of-the-art drive and control systems.
Impeccable quality: latest generation robotic welding and bar counting system for unparalleled precision.
Versatility: production of cylindrical, square, rectangular, or polygonal cages with various types of longitudinal bars.
Compact configuration: optimized design to reduce footprint and associated costs.
Ease of use: intuitive control system and quick change between different cage types.
Safety: automatic process interruption system for manual insertion of internal reinforcement rings.
Optimal support: synchronized devices for cage support during the forming phase.
Benefits:
Reduced setup times and operating costs.
Production of high-quality cages with uniform welding.
Flexibility to meet the most diverse production needs.
Reduced footprint for easy integration into the production area.
Maximum operator safety.
GAM HS are the ideal choice for manufacturers who require an efficient, versatile and reliable solution for the production of high-quality cages.

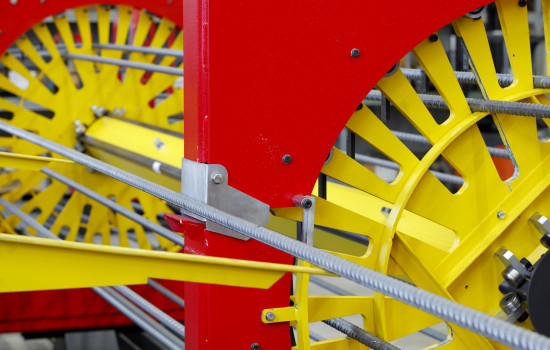

Gam 1500 HS
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.

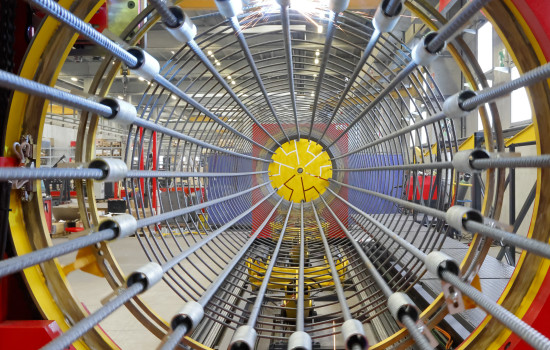

GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
CAGE LENGHT
minimum 2400 mm | 94.49”
maximum 12000-24000 mm | 472”-945”
LONGITUDINAL BARS
minimum and maximum diameter for cylindrical cage Ø8-40 mm | #3-#12
minimum and maximum diameter for polygonal cage Ø8-20 mm | #3-#6
maximum number of bars Ø 32 mm for cylindrical cage 30
SPIRAL WIRE DIAMETER
minimum and maximum cylindrical cage (on request) Ø6-16 mm (Ø20 mm) | #3 - #5 (#6”)
minimum and maximum polygonal cage Ø6-12 mm | #3 - #4
SPIRAL PITCH
maximum cylindrical cage 500 mm | 19.69”
maximum polygonal cage 300 mm | 11.81”
SQUARE CAGE SIDE
minimum by automatic welding 160 mm | 6.30”
maximum (other sizes on request) 600 mm | 23.62”
Gam 1500 HS PLUS
PRE-CAGE FORMING, CAGE ASSEMBLING, CYLINDRICAL OR VARIABLE PILES
Cages of various forms and sizes
Double welding device
Spiral with two wires
Double welding joints on the same wire
Up to 24 meters length
Fast and easy configuration
Automatic bushes positioning
The latest generation welding robot
Variable welding pitch control
Electronic control of all machine parameters
Automatic bar counting

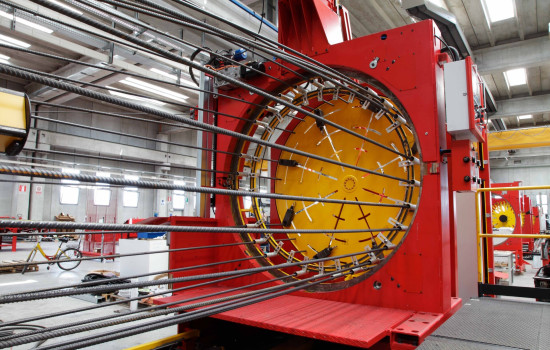

Gam 2000 HS
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
CAGE LENGHT
minimum 2400 mm | 94.49”
maximum 12000-24000 mm | 472”-945”
LONGITUDINAL BARS
minimum and maximum diameter for cylindrical cage Ø10-40 mm | #3-#12
minimum and maximum diameter for polygonal cage Ø10-20 mm | #3-#6
maximum number of bars Ø 32 mm for cylindrical cage 52
SPIRAL WIRE DIAMETER
minimum and maximum cylindrical cage (on request) Ø6-16 mm (Ø20 mm) | #2 - #5 (#6”)
minimum and maximum polygonal cage Ø6-12 mm | #2 - #4
SPIRAL PITCH
maximum cylindrical cage 500 mm | 19.69”
maximum polygonal cage 300 mm | 11.81”
SQUARE CAGE SIDE
minimum by automatic welding 160 mm | 6.30”
maximum (other sizes on request) 600 mm | 23.62”

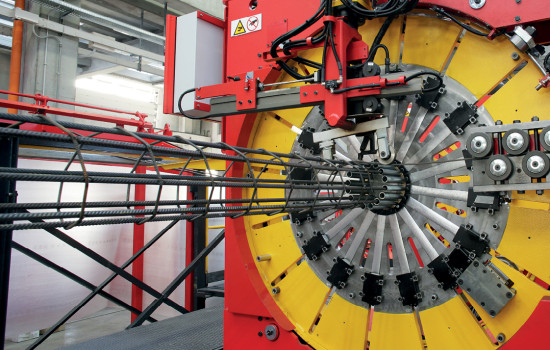

Gam 1500 HS CONIC
AUTOMATIC CAGE ASSEMBLY. SPIRAL PRECISION. MAXIMUM PRODUCTIVITY.
GAM HS is a second-generation automated cage assembly system designed for the production of cylindrical, polygonal and variable-geometry reinforcement cages. Based on a synchronized spiral forming process, the machine automatically winds and welds continuous wire around longitudinal bars, creating high-strength cages with exceptional precision, repeatability and productivity.
