Multiradius
AUTOMATIC SHAPING AND RADIUS FORMING MACHINERY
BAR ∅10 - ∅40 mm (#3 - #14)
The complete solution for the production of rings, stirrups, shaped and curved elements with clockwise and anticlockwise bends.
Maximum flexibility and productivity:
It produces bars with diameters from 10 to 36 mm and lengths up to 18 m.
It produces stirrups, shapes with multiple bends and large rings.
Patented “Multiradius” system for curving with single or multiple radii.
High productivity also for single element production.
Guaranteed safety and quality:
Ergonomic and safe working ambience.
Reduction of scrap thanks to precision and repeatability of processes.
Unique automation system for unrivalled productivity.
Key features:
Automatic loader: for a continuous and optimised work cycle.
Bundle management: with independent lifting and support storage.
Automatic bar aligment and feeding: with precise counting system.
Universal clamps: for transferring, clamping and releasing bars.
Shaping of bars ± 180°: with clockwise and anticlockwise bends.
Quick pins change: in seconds and with ''mono-bloc'' design.
Automatic bar unloading: on customisable collection stations.
MULTIRADIUS BEND 40 is the ideal choice for the production of high-quality metal elements with maximum efficiency.

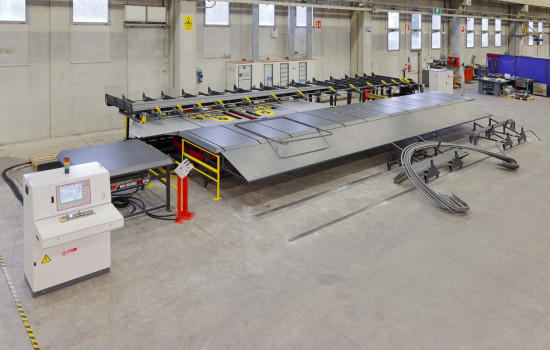

Multiradius Bend 40
AUTOMATIC SHAPING AND RADIUS FORMING MACHINERY
The complete solution for the production of rings, stirrups, shaped and curved elements with clockwise and anticlockwise bends.
DIAMETER RANGE
∅12 - ∅40 mm I #4 - #11
KEY FEATURES
Fully automated shape and radius forming (from bar loading to finished product evacuation, no manual intervention)
Produces single or multiple radii, plus circles, stirrups and bends
Clockwise and anticlockwise forming on both ends of the bar depending on shape configuration
Equipped with two moving heads performing translation, bending and radius work independently for high productivity
Enables opposite bends up to ±180°, delivering maximum freedom of shape and size
The design ensures repeatable precision and reduces rejects / set-up time
Automatic bar alignment and feeding with magnet arms that count every bar to avoid loading errors
High modularity for integration in automated plants
