Pratica

CAGE ASSEMBLING MACHINE

The PRATICA 240 makes it possible to produce cages of any shape and size with a higher quality than traditional methods.

Advantages:

• Fast and safe assembly: a single operator can perform all process steps, from setting and loading the stirrups/ bars to welding them, quickly and safely.

• Compact dimensions: the compact configuration facilitates placement within the production area, reducing space requirements and associated costs.

• Ease of use: preparation times are short thanks to the machine's ease of use.

• Versatility: cages can be made with small or large rings and straight or shaped bars.

• Precision: the two 'universal groove templates' allow the positioning and support of stirrups with a minimum pitch of 25 mm, guaranteeing high precision in cage construction.

• Ergonomics: the operator can work ergonomically thanks to the longitudinal bar support system that eliminates physical strain.

• Safety: the complete assembly process takes place in total safety, eliminating risks for the operator.

Assembling process:

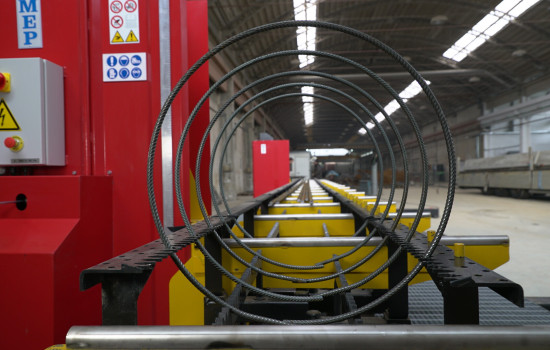

• Setting and loading the stirrups: the operator positions the ''mobile grooved template'' at the required distance and inserts the cylindrical ''indicator pins'' to secure the stirrups.

• Insertion of the longitudinal bars: the bars are positioned and welded or tied manually.

• Completing the cage: the next bars are inserted until the cage is complete.

• Cage evacuation: the completed cage is lifted up and safely out of the machine.

The PRATICA 240 is a versatile, efficient and safe solution for producing cages of all shapes and sizes. Its ease of use, precision and ergonomics make it an ideal machine for companies requiring a flexible and productive assembly system.
