Mini Syntax

SHAPE FORMING AND STIRRUP BENDING FROM COIL
The MINI SYNTAX are the highest technological development in the field of multifunctional off-coil machinery (shape forming, stirrup bending, wire straightening and radius forming) for unparalleled flexibility, productivity and final product quality.

Versatility for every need

  • These machines allow the production of a wide range of products, from simple stirrups to straight or shaped bars with one or more bends on both sides, reaching a maximum length of 18 meters. Their versatility makes them suitable both for mass production (with the possibility of machining two wires up to 13 mm in diameter at the same time) and for processing single elements (up to 16 mm in diameter).

Unparalleled productivity

  • The MINI SYNTAX 16 HS provides an unparalleled level of productivity, thanks to a state-of-the-art drives and control systems. The combined action of a number of patented devices eliminates the need for complex manual adjustments, dramatically reducing setup time and the amount of product destined to be scrapped.

3D device for complex shapes (optional)

  • Upon request, the MINI SYNTAX 16 HS can be equipped with an innovative device capable of making a variety of 3D shapes automatically and efficiently, completely eliminating manual operator intervention.

Patented anti-twisting and straightening system AFS 3

  • AFS 3 (Advance Feeding System 3) controls the rotation of the wire on its own axis during the feed phase, guaranteeing the production of closed stirrups and perfectly aligned straight bars. In the MINI SYNTAX 16 HS version, lengths are controlled by individual actuators acting on "contrast rollers" opposed to the feeding roller.

Single bending unit for maximum efficiency

  • Unlike traditional shaping machines that use two bending units, MINI SYNTAXs employ a single unit, optimizing production processes and reducing maintenance costs.

Optimal management of the production process

  • The complete production process, from the loading of the coils to the collection of the finished product, is based on a series of devices that ensure its optimal management, maximizing efficiency and productivity.

Quick and automatic wire change (optional)

  • The unique multi-wire pre-feeder, available as an option on the MINI SYNTAX 16 HS, enables automatic wires change in a very short time, ensuring smooth and uninterrupted production.

Automatic tag processing

  • A special device (optional) allows automatic processing of "tags" with even or odd quantities, combining multiple sequences involving the processing of two wires at the same time with those with a single wire.

Safety and accuracy

  • The MINI SYNTAX eliminate the dangerous manual intervention of the operator during the bending process, ensuring that closed stirrups and coplanar shapes are made with the utmost precision.

Selective collection for optimal product management (optional)

  • The MINI SYNTAX 16 HS is equipped with a programmable device that allows selective collection of straightened bars or specific types of shapes. This allows the operator to separate processing according to the quantity or type of products required, facilitating tagging or tying operations.

The MINI SYNTAX are the ideal solution for companies looking for a high-performance, versatile and safe bending machine to meet the most demanding production requirements.

Mini Syntax 16

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅8 - ∅16 mm

  • AFS 3 (Advanced Feeding System) Generation III

  • Two wires up to ∅13 mm (#4)

  • Automatic multi-wire pre-feeder option

  • The “Secondary Feeding Unit” patented system

  • Bending pins accordingly to international rules

  • Automatic collection with chain collector conveyor and stirrups and shape collectors

Request information

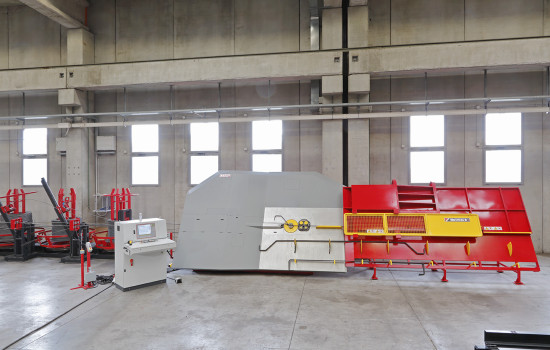

Mini Syntax 16 HS

SHAPE FORMING AND STIRRUP BENDING FROM COIL

COIL ∅8 - ∅16 mm

AFS 3 (Advanced Feeding System) Generation III

• Two wires up to ∅13 mm (#4)

• Device for a variety of 3D shapes

• Automatic multi-wire pre-feeder option

• The “Secondary Feeding Unit” patented system

• Bending pins accordingly to international rules

• Automatic collection with chain collector conveyor and stirrups and shape collectors
