RF

OFF COIL WIRE STRAIGHTENERS

COIL ∅5 - ∅20 mm

RF series straightening machines are characterised by their ease of use, robustness and ability to guarantee a high quality finished product. These features make them ideal for use in a variety of contexts, even in unprotected environments.

Versatility for every need:

  • Capacity to straighten and cut-to-length wire up to 12 metres long.

  • Available in different versions for processing reels in diameters from 5 to 20 mm.

Customisable production modes:

  • High productivity: RF 10 and RF 20 for the production of same length wires.

  • Flexibility for single elements: RF 10M and RF 20M for cutting wires at variable lengths.

Precise control and maximum efficiency:

  • Feed speed adjustable according to the diameter of the wire to be worked.

  • “Multiprogram” versions (RF 10M and RF 20M):

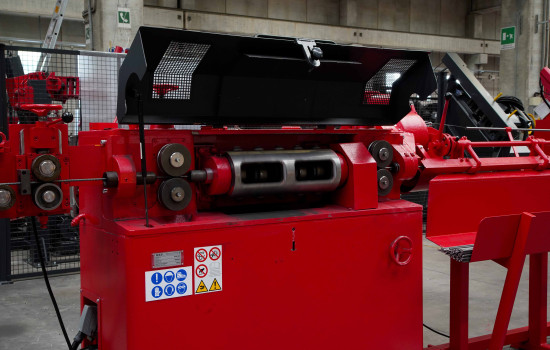

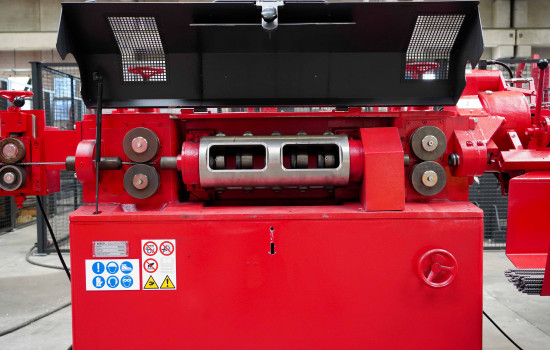

  • Roller pre-straightener group for greater precision.

  • Set of two opposing rollers with encoder for precise measuring of wire.

  • Electronic programming of cutting lengths with pre-loaded cutting sequences.

Versions RF 10 and RF 20:

  • Channel with manually adjustable guide support for cutting to size.

  • The bars produced are cut to size and transported to a collection position below.

The RF series straightening machines are the ideal solution for those looking for a reliable, versatile product that guarantees high quality results.

RF 10

OFF COIL WIRE STRAIGHTENER

COIL ∅5-∅10 mm

• Roller pre-straightener group

• Variation of wire feed speed according to the different diameters to be produced

• Processing wire in coils with the same length

• Run-out channel equipped with a guide bracket with mechanical stop for manual adjustment of cutting lengths

• Static shear

Request information

RF - 10M

OFF COIL WIRE STRAIGHTENER

COIL ∅5-∅10 mm

• Programmable cutting sequence with “Multiprogram”

• Electronic programming of the cutting length is based on pre-loaded cutting sequences.

• Processing wire in coils with variable lengths

• Static shear

Request information

RF - 20M

OFF COIL WIRE STRAIGHTENER

COIL ∅5 - ∅20 mm

• Programmable cutting sequence with “Multiprogram”

• Electronic programming of the cutting length is based on pre-loaded cutting sequences.

• Processing wire in coils with variable lengths

• Static shear

Request information
