Syntax Line

CUTTING AND BENDING PLANTS

BAR ∅10 - ∅32 mm (#3 - #10)

The SYNTAX LINE machines represent the cutting edge of innovation in the field of multifunctional machines for cutting, bending, and calendering bars, offering the highest levels of flexibility, productivity, and product quality.

Key features:

  • Patented dual independent cutting unit system: maximum precision on every cut.

  • Double cutting unit with universal knives: processing of bars of any diameter without interruptions.

  • Single bending unit with self-locking monobloc pins: robustness, reliability, and ease of use.

  • Capacious warehouse with fixed or mobile compartments: orderly and safe storage of bar bundles.

  • Folding lower element worktop: production of large stirrups and shapes and easy collection.

  • Motorized collection cart (optional): equipped with a container for scraps and reusable bars, it guarantees a clean and safe working environment.

  • Conveyor belt (optional): allows the automatic transfer of stirrups and shaped products to an adjacent area, improving efficiency and operator safety.

Advantages:

  • Flexibility: processing of bars with diameters from 8 to 32 mm and production of elements with maximum lengths of up to 18 m.

  • High productivity: thanks to the complete automation of the process.

  • Superior quality: thanks to patented devices that reduce waste and set-up time.

  • Safety: elimination of manual intervention during the bending phase.

  • Efficiency: optional conveyor belt for automatic collection of finished products.

The SYNTAX LINE machines are the ideal choice for companies that demand the highest levels of performance, quality, and safety.

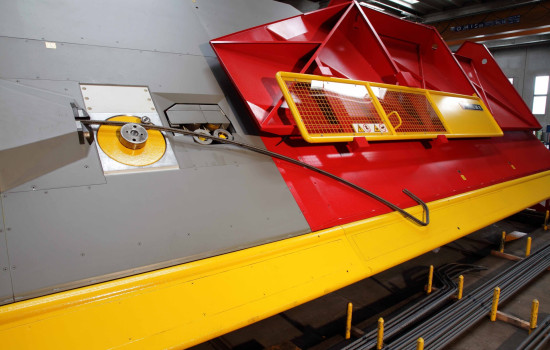

Syntax Line 28

CUTTING AND BENDING PLANT

BAR ∅10 - ∅28 mm (#3 - #8)

• Double bars up to ∅20 mm (#6)

• Bar presence detector

• The patented method “Multifunction Feeding”: gripper and feed rollers

• Dual shears

• Bending pins accordingly to international rules

Request information

Syntax Line 28 M

CUTTING AND BENDING PLANT

BAR ∅10 - ∅28 mm (#3 - #8)

• Double bars up to ∅20 mm (#6)

• Bar presence detector

• The patented method “Multifunction Feeding”: gripper and feed rollers

• Dual shears

• Bending pins accordingly to international rules

• Mobile

Request information

Syntax Line 32 Multiradius

CUTTING AND BENDING PLANT

BAR ∅12 - ∅32 mm (#3 - #10)

• Double bars up to ∅20 mm (#6)

• Bar presence detector

• The patented method “Multifunction Feeding”: gripper and feed rollers

• Dual shears

• Bending pins accordingly to international rules

“Multiradius” device (optional)

Request information

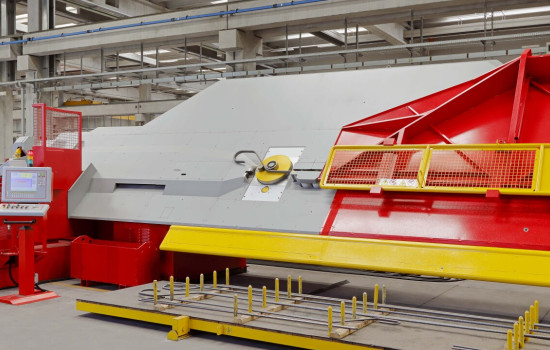

Syntax Line 32

CUTTING AND BENDING PLANT

BAR ∅12 - ∅32 mm (#3 - #10)

• Double bars up to ∅20 mm (#6)

• Bar presence detector

• The patented method “Multifunction Feeding”: gripper and feed rollers

• Dual shears

• Bending pins accordingly to international rules

Request information

Syntax Line 32 M

CUTTING AND BENDING PLANT

BAR ∅12 - ∅32 mm (#3 - #10)

• Double bars up to ∅20 mm (#6)

• Bar presence detector

• The patented method “Multifunction Feeding”: gripper and feed rollers

• Dual shears

• Bending pins accordingly to international rules

• Mobile

Request information
