LTM
SHEAR LINES
LTM 500 and LTM 300 are robust and reliable cutting systems designed for the production of cut-to-length bars with the highest precision and flexibility.
Key Features:
High-capacity hydraulic shear: Robust and reliable, ideal for the mass production of identical bars.
Optional automation: Active control of the production process for maximum versatility and productivity.
Modular bundle storage: Storage of bars of different lengths or diameters in multi-level positions.
ABSR automatic storage (optional): Dynamic management of the bar storage based on production needs.
Patented automatic loader (optional): Fast, precise, and efficient feeding.
Guillotine shears: Positioned on a sturdy structure for precise and reliable cutting.
Optional collection systems:
Rotoflex: Three independent collection stations with rotating bags.
AOR (Active Optimization Racks): Customizable modular system with configurable bags and lengths.
Benefits:
High productivity: Ideal for the mass production of identical bars.
Flexibility: Adaptable to diverse production and layout requirements.
Precision: Precise cutting with minimal tolerances to meet the highest quality standards.
Efficiency: Automated system optimizes production flows and reduces cycle times.
Safety: Reduces manual material handling, increasing operator safety.
LTM 500 and LTM 300 represent the ideal solution for companies requiring a flexible, efficient, and safe cutting system for the production of cut-to-length bars.

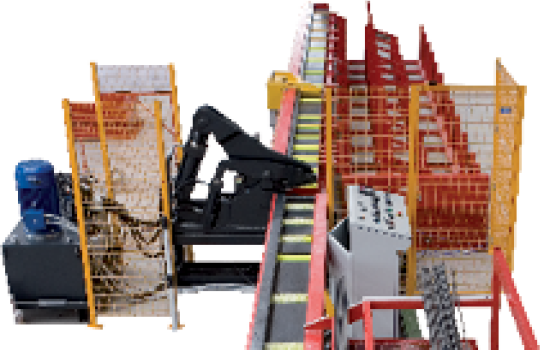

LTM 300
SHEAR LINE
• Automatic systems for management of “cut to length” bars (optional)
• Tying, tagging and automatic collection
• Guillotine shears
• Blade width 380 mm (14,96’)
• Cut capacity 1 bar ∅60 mm
• Automatic bar loader (patented)
• Configuration with systems Rotoflex and AOR (Active Optimization Racks)
• Simulation optimized work sequence
• Bundle storage racks from 1 to 3 levels with capacity 2.5 t – 5 t each (optional)
• Chain feeder for bar transfer and buffering (optional)
• Shape forming units of the P, CS or Multiradius series (optional)
Request information

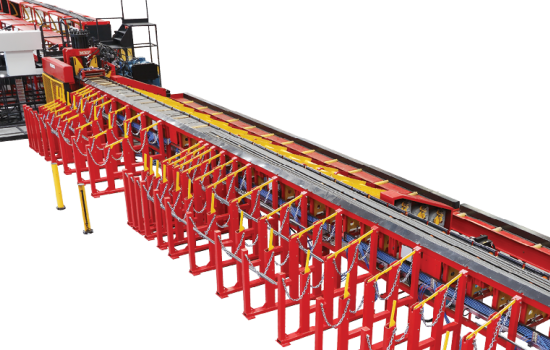

LTM 500
SHEAR LINE
• Automatic systems for management of “cut to length” bars (optional)
• Tying, tagging and automatic collection
• Guillotine shears
• Blade width 530 mm (20,87’)
• Cut capacity 3 bar ∅50 mm
• Automatic bar loader (patented)
• Configuration with systems Rotoflex and AOR (Active Optimization Racks)
• Simulation optimized work sequence
• Bundle storage racks from 1 to 3 levels with capacity 2.5 t – 5 t each (optional)
• Chain feeder for bar transfer and buffering (optional)
• Shape forming units of the P, CS or Multiradius series (optional)
Request information

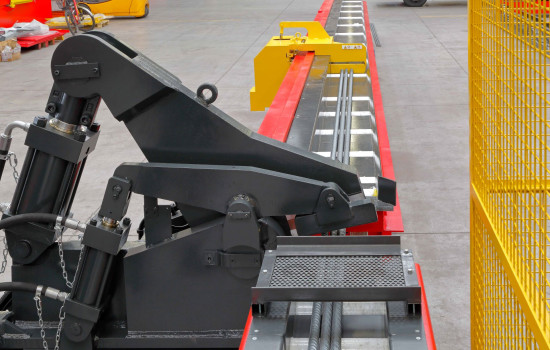

LTM 60
SHEAR LINE
• Hydraulic “alligator” shear
• Blade width 300 mm (11,81’)
• ABSR automatic bar magazine (Active Bar Storage Racks) patented
• Bundle storage rack from 1 to 3 levels (optional)
• Automatic bar loader (patented)
• Configuration with systems Rotoflex and AOR (Active Optimization Racks)
• Simulation optimized work sequence
• Shape forming units of the P, CS or Multiradius series (optional)
• Tying, tagging and automatic collection
