Preform
PRE-CAGE ASSEMBLERS
The PREFORM C and PREFORM C8 plants offers a complete and versatile solution for precast production, guaranteeing high levels of quality, productivity and flexibility.
Functionality:

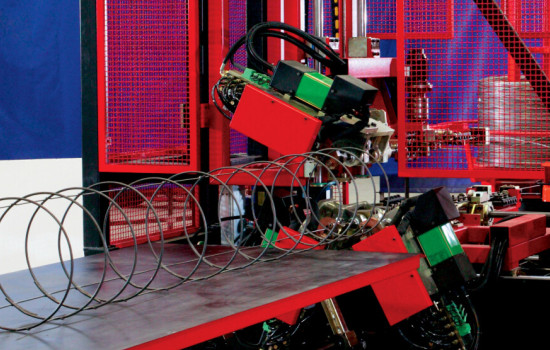

Universal pre-cage assemblers for automatic welding stirrups with two or three longitudinal wires ("supporting") at programmed distances ("steps").
Production of pre-cages of various shapes and sizes with short assembly times and high quality.
Versions for 4 to 8 mm bars and 4 to 16 mm stirrups.
Benefits:
Fast and precise production process with one operator.
Compact and modular configuration to optimise space.
Production of fully automatic pre-cages with stirrups and rings of different shapes and sizes.
Controlled current welding that preserves the characteristics of steel and reduces energy consumption.
Independent programming of welding heads for diameters and clamp positioning.
Welding sequence adaptable to available energy.
Lateral insertion of the stirrups for easy and safe loading.
Superior productivity to machines on the market.
Preform C
UNIVERSAL PRE-CAGE ASSEMBLER
• Universal pre-cage assembler: automatically welds stirrups to longitudinal bars.
• Pre-cages of all shapes and sizes: reduces assembly time and improves quality.
• Wire in coils and stirrups: diameter 4-8 mm and 4-16 mm respectively.
• Fast and precise process: one operator for maximum efficiency.
• Compact and modular configuration: optimises space and adapts to requirements.
• Production flexibility: automatic pre-cages in different shapes and sizes.
• Controlled current welding: high performance and energy saving.
• Independent programming of welding heads: precise control.
• Optimised welding sequence: top energy efficiency.
• Lateral insertion of the stirrups: quick and safe loading.
Request information

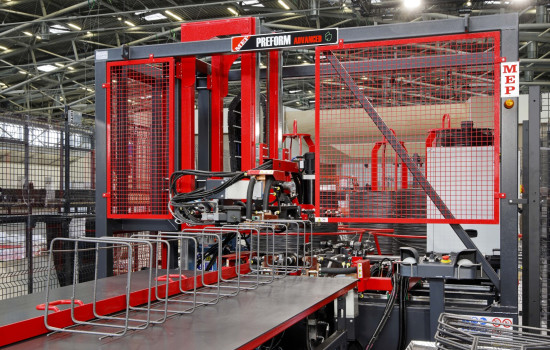

Preform C8
UNIVERSAL PRE-CAGE ASSEMBLER
Automatic welding of stirrups on 2-3 longitudinal bars at programmable distances.
Different shapes and sizes of pre-cages with short lead times and high quality.
For wire in coils from 4 to 8 mm and stirrups from 4 to 16 mm.
Fast and precise process with one operator.
Compact and modular design to optimise space.
Fully automatic pre-cages in different shapes and sizes.
Current-controlled welding for quality and energy savings.
Reducing set-up times and scrap thanks to patented devices.
High levels of quality, productivity and flexibility in pre-cage production.
